Urban Interlock
About Urban Interlock
The Urban Interlock System has been designed for applications where stone or tile finishes are to be applied. The panels specially designed interlock edge profile ensures panels remain locked together, eliminating movement.
The science behind the system
The ASP Urban Interlock System has been scientifically designed to disseminate load transference through the system to ensure there are zero stress rises and zero deflection within the system.
Deflection and stress rises were a great problem for access floors in the 1970’s, 80’s and 90’s due to the basic design and lack of understanding of building movement and design.
ASP has designed a proprietary interlock system that is able to take great loads both static and dynamic. This has provided the perfect solution imitating a secondary slab effect that ensures tiles and stone finishes do not crack.
The Interlock system provides an interlocked design, which ensures no movement and so eliminates the need for substrates. This elimination of substrates means the Interlock is a cost and time efficient design solution.
Features

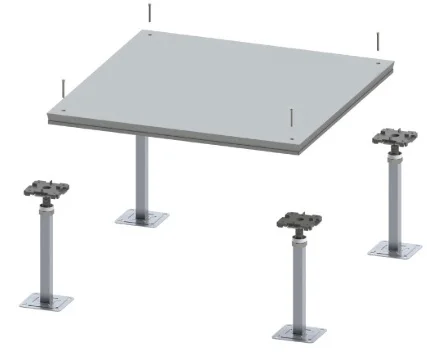

4 corner screw panel
System allows fast, efficient installation
Adjusting and locking nut, Locating gasket, Sound Impact Buffer, Inbuilt expansion joint gasket.
Locating gasket on pedestal heads for efficient and acoustic cutout installation
Patented panel design with inbuilt expansion joint and acoustic cutout
Load Tolerances
Explore the relevant tabs below to learn more about the Icon Air System
Applications
Specification Sheets
Downloads
Applications
- Stone and Tiled Areas
- Foyers
- Amenities
- Lift Lobbies
- Breakout Spaces
