Introducing the Urban Panel

Introducing the Urban Panel

The Urban Series allows for both functionality and design flexibility with its strength and composition. The steel-wrapped Urban Panel is a composition panel with its main core ingredients of gypsum and fiber. The core is wrapped with galvanized steel, creating a strong durable panel suitable for commercial environments.

Explore the Urban Access Floor Systems

Outstanding static and live Ioad performance

Steel encased core adding strength and durabiity

Non-combustible

Molsture resistant

Ease of maintenance and serviceability with interchangeable panels

Great durability and lifespan contributing o a significant reduction in life cycle costs

Excellent earthing continuity

High recycled content

Contributes significantly to Green Star and LEED requirements through a completed product LCA & EPD

Creates a quiet and comfortable underfoot solution

Urban X
URBAN RIGID
DOWNLOAD URBAN CATALOGUE

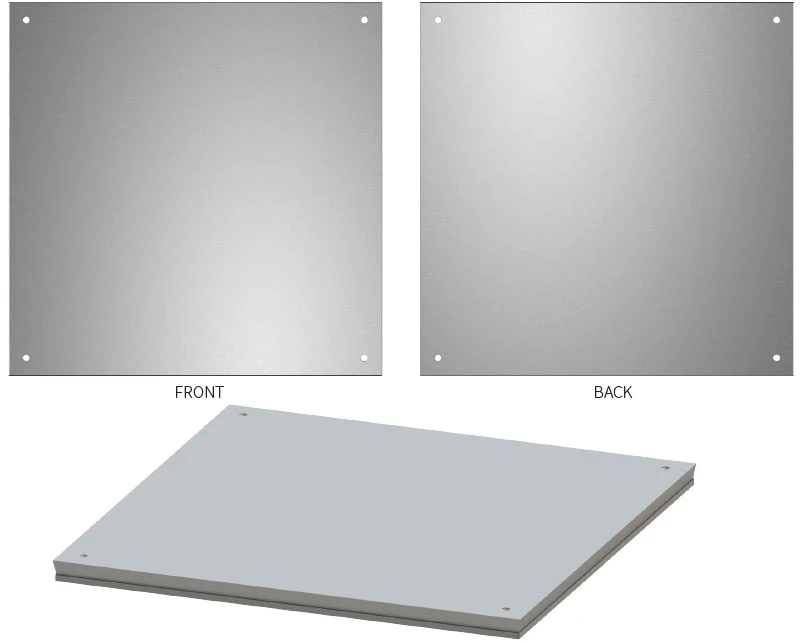

The Panel Construction

SIZE 600mm x 600mm

DEPTH 33mm

CONSTRUCTION
The panels consist of a hardened steel top and bottom sheet plate with corrosion-resistant protection, inside and out, encapsulating a structural cementitious core.

CORE Cementitious Compound

TOLERANCE
±0.25mm and a flatness tolerance of ±0.5mm measured on a diagonal across the top of the panel

FINISH
ASP’s standard powder coated finish.

CONNECTION
The panel is screw fixed to the pedestal head at all four corners

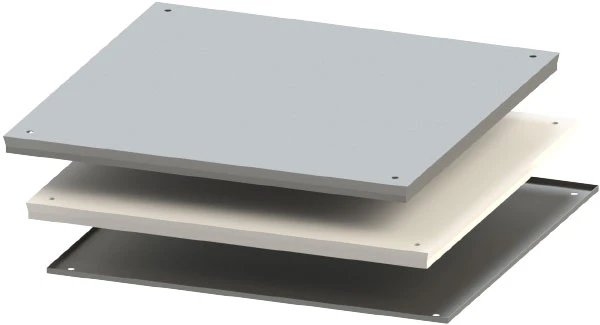

  • Moulded Galvanised Steel Top Plate
  • Moulded Galvanised Steel Bottom Plate
  • Calcium Sulphate Core
