Introducing the Urban Interlock Panel
Introducing the Urban Interlock Panel
The Urban Interlock Panel is a composition panel with its main core ingredients of gypsum and fibre. A galvanized steel base plate is adhered to the core, creating a strong durable panel suitable for various environments.
The Urban Interlock Panel has been designed for applications where stone or tile finishes are to be applied. The panels specially designed interlock edge profile ensures panels remain locked together, eliminating movement.
Explore the Urban Interlock Access Floor System
Outstanding static and live load performance
Eliminates movement
Non-combustible
Molsture resistant
Ease of maintenance and serviceability with interchangeable panels
Great durabilty and lifespan contributing to a significant reduction in e cycle costs
Prevents cracking in tiled and stone areas.
High recycled content
Contributes significantly to Green Star and LEED requirements through a completed product LCA & EPD
Creates a quiet and comfortable underfoot solution
The Panel Construction
SIZE 600mm x 600mm
DEPTH
Extra Heavy Grade 30.4mm
Industrial Grade 30.8mm
Heavy Industrial Grade 38.4mm
Super Heavy Industrial 38.8mm
CONSTRUCTION
The panel consists of a bare calcium sulfate surface and a bottom galvanized steel reinforcing plate. The panel edges feature an interlocking profile.
CORE Calcium Sulphate
TOLERANCE±0.25mm and a flatness tolerance of ±0.5mm measured on a diagonal across the top of the panel
FINISH Bare Calcium Sulphate
CONNECTION
The panel interlocks to the adjacent panels and can be screw fixed to the pedestal head at all four corners.

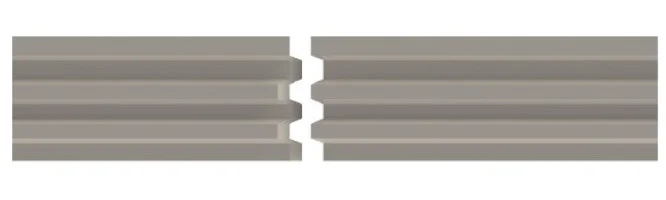

- Interlocking Edge Profile Detail
- Galvanised Steel Bottom Plate
